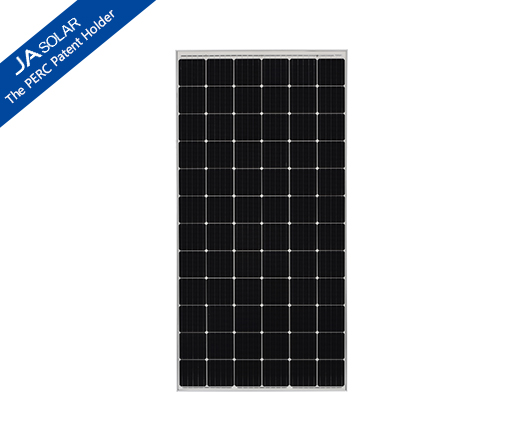

72-Cell Bifacial Mono
PERC Double Glass Module PERC
JAM72D09/BP
- More energy generation
- Superior low irradiance performance
- Excellent temperature dependent performance
- Lower LCOE
- Rated Power : 370 – 375 – 380 – 385 - 390
|
Cell
|
Mono
|
|
No. of cells
|
72（6×12）
|
|
Rated
Maximum Power(Pmax)
|
390W
|
|
Maximum
Efficiency
|
19.6%
|
|
Junction Box
|
IP68
|
|
Maximum
System Voltage
|
1500V DC
|
|
Operating
Temperature
|
-40℃～+85℃
|
60-Cell Bifacial Mono
PERC Double Glass Module(30mm frame) PERC
JAM60D09/BP
- 3%~15% more energy generation
- Framed design, ease of transportation and
installation
- Superior low irradiance performance
- Excellent temperature dependent performance
- Rated Power : 305 – 310 – 315 – 320 - 325
| Cell |
Mono |
| No. of cells |
60（6×10） |
| Rated Maximum Power(Pmax) |
325W |
| Maximum Efficiency |
19.3% |
| Junction Box |
IP68 |
| Maximum System Voltage |
1500V DC |
| Operating Temperature |
-40℃～+85℃ |
72-Cell Bifacial Mono
PERC Double Glass Module(30mm frame) PERC
JAM72D09/BP
- 3%~15% more energy
generation
- Framed design, ease of transportation and
installation
- Superior low irradiance performance
- Excellent temperature dependent performance
- Power rated : 370 – 375
– 380 – 385 - 390
|
Cell
|
Mono
|
|
No. of cells
|
72（6×12）
|
|
Rated
Maximum Power(Pmax)
|
390W
|
|
Maximum
Efficiency
|
19.5%
|
|
Junction Box
|
IP68
|
|
Maximum
System Voltage
|
1500V DC
|
|
Operating
Temperature
|
-40℃～+85℃
|
